Continuous PU/ PIR Sandwich Panel Production Line
Continuous PU/ PIR Sandwich Panel Production Line
This continuous PU sandwich panel production line is a fully automatic continuous forming system specially designed for manufacturing polyurethane (PU) insulated sandwich panels. It integrates raw material feeding, continuous foaming, high-pressure mixing, double-belt laminating, curing, trimming, sawing, stacking and automatic control into one complete production workflow.
The line adopts advanced PU high-pressure foaming technology, with stable foam density, uniform cell structure and excellent thermal insulation performance. It can produce panels with different thicknesses, widths and surface materials, such as color steel plate, galvanized steel, aluminum sheet, stainless steel, etc. Finished PU sandwich panels are widely used in cold storage, clean room, industrial workshop, prefabricated building, roof and wall enclosure system.
Equipped with PLC centralized control system, frequency conversion speed regulation and automatic formula adjustment function, the production line features stable running, easy operation and high production efficiency. It can realize continuous non-stop production, greatly reduce labor cost and ensure consistent panel quality batch by batch. Customized configurations are available according to customers’ technical requirements and site layout.


Contact us

Video Of PU / PIR Continuous Sandwich Panel Production Machine

Main Technical Parameters/Specifications of PU/ PIR Continuous Sandwich Panel Production Line

Item Parameter
Material Type Color steel sheet; galvanized sheet, Aluminum sheet
Thickness 0.4-0.8
Width ≤1250(Max)
Suitable size of panel Length 2000-16000
Width 600-1200
Thickness 30-200 (Not including height of corrugation)
Production speed 3-8 (Adjustable)
Valid length of double belt conveyor(mm) 16000-36000
Work pressure on pouring foam 150-200
Total power About 300
Total size(Length×Width×Height)(mm) 130000×15000×6000

Features of PU PIR Sandwich Production Line

● Beautiful and applicable, multiple functions, such as thermal isolation, sound isolation and flame retardance.

● Using heated air recycle oven, strictly control the temperature of PU foaming and solidification in suitable range

● Using high-pressure foaming system, precise measurement, high stability, little dust in the locale, protect the worker's health.

● Using 141B or Pentane as foaming agent. Instead of carbon chloral-fluoride, make the PU foaming treatment become an environmental production craft.

● Special double belt conveyor, flat surface of sandwich panel, even thickness, anti-pattern

● Operation system controlled by PLC computer, personal design and simple operation.

Panel Drawings of PU / PIR Continuous Sandwich Panel Production Line

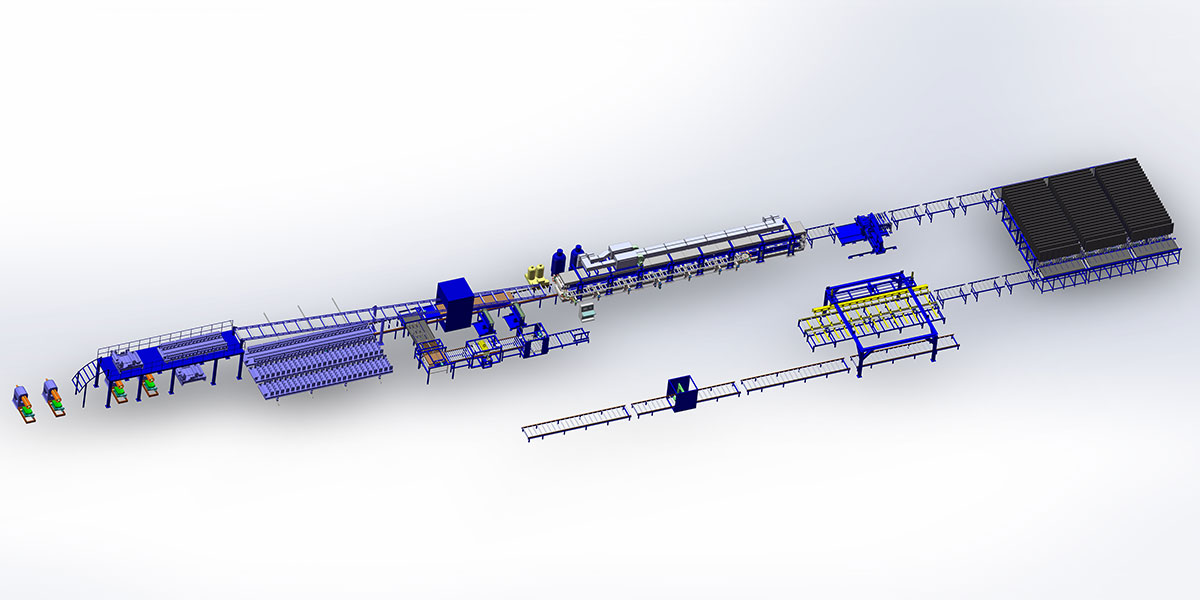

Working Process Layout Of PU / PIR Sandwich Panel Production Line Manufacturing

decoiling-system-of-polyurethane-sandwich-panel-machine

Decoiling System

Decoiler transverse location---Lifting stage move outside---coil hoisting-lifting stage move inside---Lifting stage rise----Lifting stage car move to inside position---Decoiler axle expanding (---Pressing-arm press tightly)----Lifting stage reset position---decoiler uncoiling material.

Decoiling System

Decoiler transverse location---Lifting stage move outside---coil hoisting-lifting stage move inside---Lifting stage rise----Lifting stage car move to inside position---Decoiler axle expanding (---Pressing-arm press tightly)----Lifting stage reset position---decoiler uncoiling material.

decoiling-system-of-polyurethane-sandwich-panel-machine
decoiling-system-of-polyurethane-sandwich-panel-machine

Decoiling System

Decoiler transverse location---Lifting stage move outside---coil hoisting-lifting stage move inside---Lifting stage rise----Lifting stage car move to inside position---Decoiler axle expanding (---Pressing-arm press tightly)----Lifting stage reset position---decoiler uncoiling material.

Profiles of Polyurethane Continuous Sandwich Panel Production Line

PU panel production line is used to make energy saving wall panel, energy saving roof panel, refrigeration house panel, garage door panel, etc. It is a potential building enclosed material with a broad use and a new type of energy saving material advocated by the ministry of construction.

  • coldstoragepanelmanufacturedbyjinggongpupircontinuoussandwichpanelproductionline
    Cold Storage Panel
  • doorpanelmanufacturedbyjinggongpupircontinuoussandwichpanelproductionline
    Cold Storage Panel
  • decorationpanelmanufacturedbyjinggongpupircontinuoussandwichpanelproductionline
    Cold Storage Panel
  • containerroompanelmanufacturedbyjinggongpupircontinuoussandwichpanelproductionline
    Cold Storage Panel

Gallery of Polyurethane Continuous Sandwich Panel Production Line

  • decoiling-system-of-polyurethane-sandwich-panel-machine
    Bandsaw cutting system
  • cooling-system-of-pu-sandwich-panel-production-line
    Bandsaw cutting system
  • 2
    Bandsaw cutting system
  • 1
    Bandsaw cutting system
  • foaming-accessories-of-polyurethane-sandwich-panel-machine
    Bandsaw cutting system
  • filming-slitting-and-cutting-of-continuous-pu-sandwich-panel-production-line
    Bandsaw cutting system
